GG20 Gray Cast Iron: Properties, Applications, and Industrial Significance

GG20 is a widely used grade of gray cast iron, known for its excellent casting properties, good machinability, and moderate mechanical strength. The “20” in its designation refers to its minimum tensile strength of 200 MPa. GG20 has established itself as a staple material in the manufacturing of machine components, automotive parts, and construction applications. This article provides a detailed analysis of GG20 from multiple perspectives, including its properties, production process, applications, advantages, and limitations.

1. Material Properties of GG20

GG20 is classified as a gray cast iron due to its characteristic graphite flake structure. These flakes provide unique properties that distinguish it from other types of iron and steel.

  • Graphite Flake Structure: The flaky graphite imparts GG20 with excellent damping capacity and thermal conductivity, making it suitable for vibration-prone and heat-dissipating applications.
  • Tensile Strength: GG20 has a minimum tensile strength of 200 MPa, which is sufficient for many medium-duty applications.
  • Hardness: The material exhibits a typical hardness of 180–220 HB, balancing wear resistance with machinability.
  • Brittleness: The flake graphite reduces ductility and impact resistance, making GG20 less suitable for dynamic or high-stress applications.
  • Thermal Conductivity: GG20 offers excellent thermal conductivity due to its graphite structure, enabling efficient heat dissipation.
  • Vibration Damping: The presence of graphite provides superior vibration damping, reducing noise and wear in machinery.

2. Manufacturing Process

The production of GG20 involves a series of precise steps to ensure consistent material quality and desirable casting characteristics.

  • Melting and Alloying: Base materials, including pig iron and scrap steel, are melted in a furnace. Alloying elements like carbon, silicon, and manganese are added to achieve the desired composition. Silicon, in particular, promotes the formation of graphite flakes.

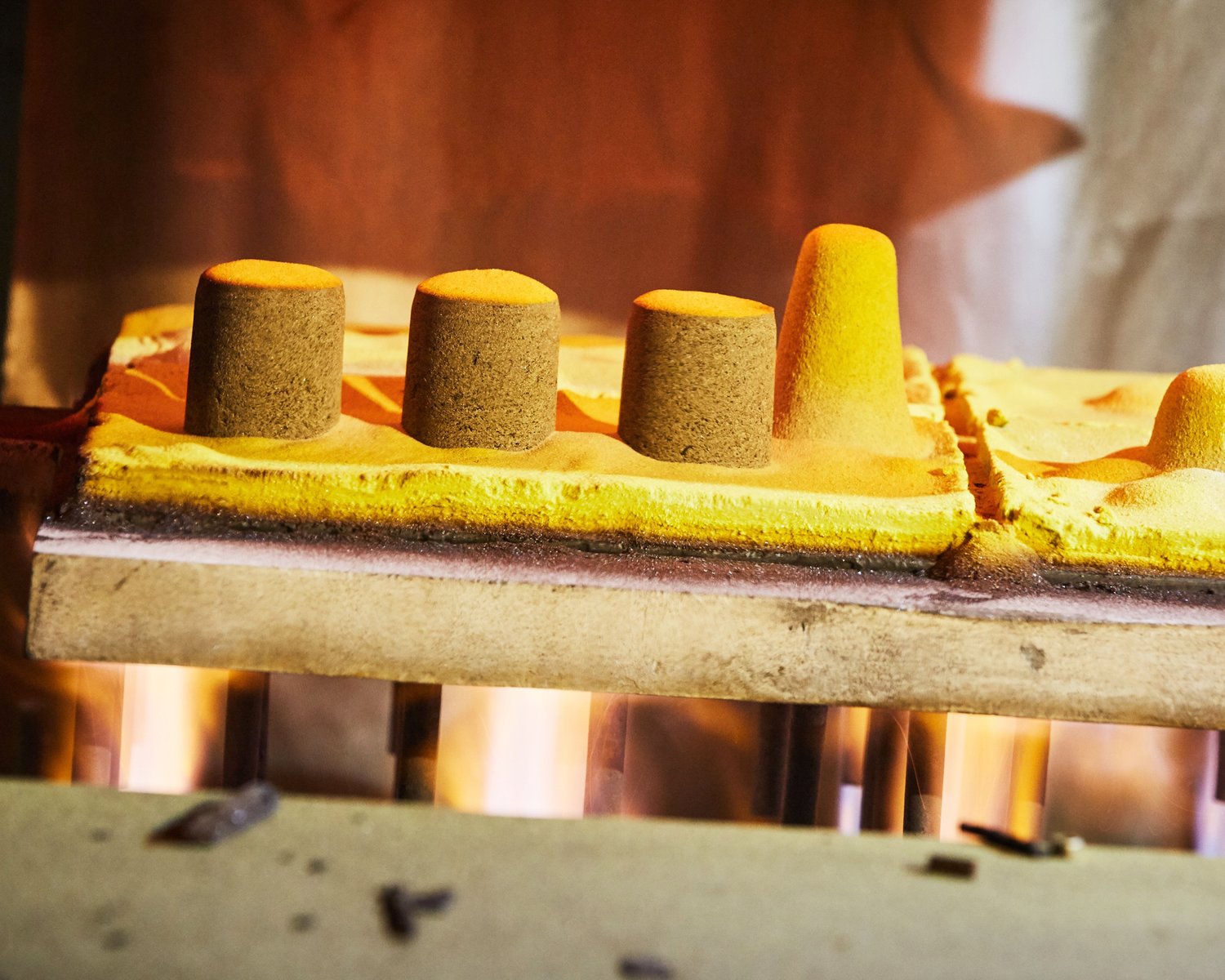

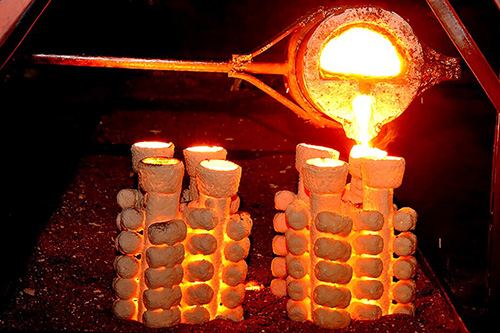

  • Casting Process: GG20 is typically produced using sand casting, a cost-effective and versatile method suitable for intricate shapes and large-scale production.

  • Cooling and Solidification: Controlled cooling is critical to achieve the proper microstructure. Slow cooling ensures the formation of the desired flake graphite within the ferritic or pearlitic matrix.

  • Post-Casting Treatments: Components may undergo surface cleaning, machining, or heat treatment to improve dimensional accuracy and surface quality.

  • Quality Control: Non-destructive testing methods like ultrasonic or X-ray inspections are often employed to detect internal defects such as porosity or shrinkage cavities.

3. Applications of GG20

GG20’s balanced properties make it a popular material in various industries for components requiring moderate mechanical strength, good machinability, and vibration damping.

  • Automotive Industry: GG20 is used in components such as brake discs, clutch plates, and engine blocks due to its wear resistance and ability to withstand thermal cycling.
  • Machine Tool Industry: The material is ideal for producing machine tool bases, housings, and frames, where its vibration-damping properties reduce operational noise and improve precision.
  • Construction Applications: GG20 is used in manhole covers, pipes, and structural supports where moderate strength and durability are required.
  • Heating and Cooling Systems: Its excellent thermal conductivity makes it suitable for radiator components, heat exchangers, and stove parts.
  • General Machinery: GG20 is employed in gears, flywheels, and pump housings, benefiting from its machinability and wear resistance.

4. Advantages of GG20

GG20’s popularity stems from several inherent advantages that make it a versatile and economical choice for a wide range of applications.

  1. Cost-Effectiveness: GG20 is relatively inexpensive to produce, making it an economical option for large-scale manufacturing.
  2. Excellent Castability: The material flows well in molten form, enabling the production of complex shapes with fine details.
  3. Machinability: GG20 is easy to machine, allowing for precise finishing and reduced tooling costs.
  4. Thermal and Vibration Performance: The high thermal conductivity and vibration damping of GG20 improve component reliability in demanding environments.
  5. Corrosion Resistance: Although not as resistant as ductile irons or stainless steels, GG20 offers moderate resistance to atmospheric and water-based corrosion.

5. Limitations of GG20

Despite its advantages, GG20 has certain limitations that restrict its use in specific applications:

  • Brittleness: The flake graphite structure leads to lower tensile strength and impact resistance compared to ductile iron, making it unsuitable for high-stress or dynamic applications.
  • Limited Ductility: GG20 lacks flexibility and may crack under excessive deformation or sudden loads.
  • Wear in Aggressive Environments: In highly abrasive or chemically aggressive environments, GG20 may require protective coatings or alternative materials.

6. Comparison with Other Cast Irons

  • GG20 vs. GG25: GG25 offers higher tensile strength and slightly reduced machinability compared to GG20, making it more suitable for heavier-duty applications.
  • GG20 vs. Ductile Iron: Ductile iron, such as GGG40, provides superior ductility, impact resistance, and strength, but at a higher cost. GG20 remains a preferred choice for applications where these properties are not critical.
  • GG20 vs. Steel: Steel offers better mechanical properties, but GG20’s castability, vibration damping, and cost advantages make it preferable for specific uses.

7. Conclusion

GG20 gray cast iron is a versatile and cost-effective material with excellent casting properties, good machinability, and superior vibration damping. Its applications span across automotive, machinery, construction, and heating industries, demonstrating its adaptability to a range of operational demands. However, its brittleness and limited ductility necessitate careful consideration of its use in high-stress or impact-prone environments.

As industries continue to innovate, GG20 remains a reliable and economical choice for medium-duty components, striking a balance between performance, cost, and manufacturability. Its widespread adoption underscores its enduring value in industrial manufacturing.
