Introduction
Shell mold casting, also known as shell molding, is a highly efficient and precise casting process widely used in the manufacturing of complex metal parts. Developed during World War II, this process combines the advantages of traditional sand casting with a more refined molding technique that yields superior accuracy and surface finishes. Today, shell mold casting is extensively utilized in industries such as automotive, aerospace, and machinery, where high-quality and intricate metal components are essential.https://nydcasting.com/casting-process/
Principles of Shell Mold Casting
Shell mold casting relies on creating a thin, rigid shell mold using a sand-resin mixture. The mold is formed over a heated pattern, which causes the resin to bond the sand particles into a hard shell. This shell mold is lightweight yet robust, allowing it to withstand the high temperatures of molten metal pouring while maintaining dimensional accuracy.
The process is particularly suited for producing intricate geometries, fine surface details, and tight tolerances, making it ideal for components requiring high precision and minimal finishing.
The Shell Mold Casting Process
Shell mold casting involves several distinct steps:
1. Pattern Creation
A pattern, typically made of metal such as aluminum or steel, is created to replicate the desired part. This pattern is precision-engineered to ensure accurate mold formation.
2. Mold Creation
The mold-making process begins with heating the pattern to a specific temperature, usually between 175°C and 370°C (350°F to 700°F). A sand-resin mixture, often containing fine-grained silica sand and a thermosetting resin, is poured over the heated pattern. The heat causes the resin to cure and bond the sand particles together, forming a thin, rigid shell.
The excess sand is removed, and the shell is further baked in an oven to enhance its strength and stability. Typically, two shell halves are made and later joined to form the complete mold.
3. Core Formation (if needed)
For hollow or intricate components, cores are used to create internal cavities. These cores are also made using the shell mold process to ensure compatibility with the mold.
4. Assembly

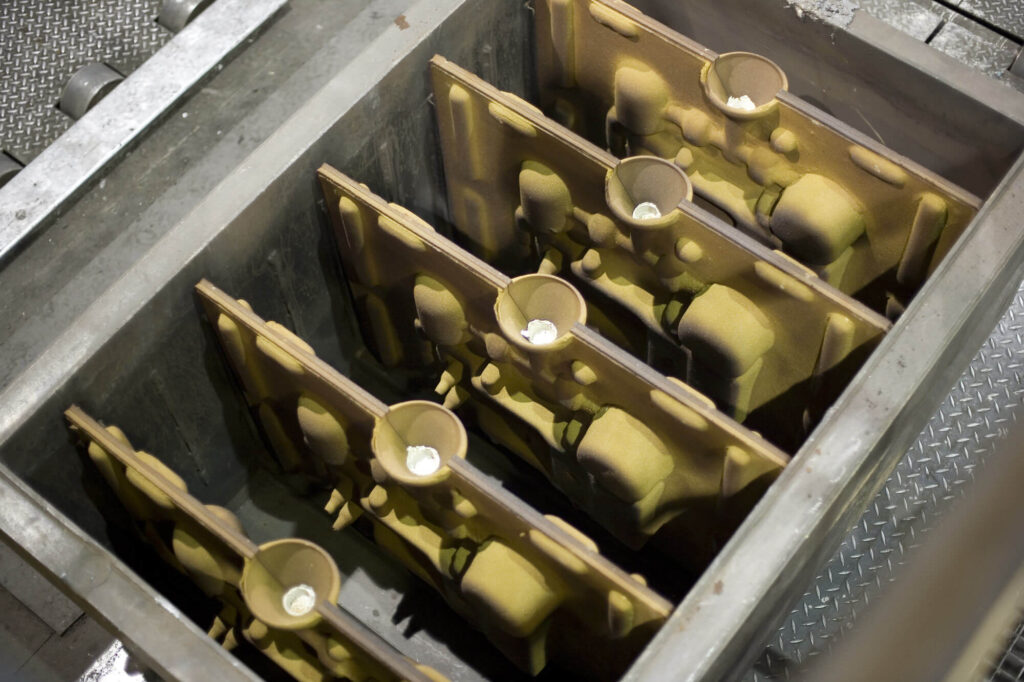

The shell mold halves are assembled and clamped together. If cores are required, they are inserted at this stage. The assembled mold is then supported in a flask with backing material, such as metal shot or sand, to ensure stability during pouring.
5. Metal Pouring
Molten metal is poured into the mold cavity. The rigid shell withstands the heat and pressure, ensuring the molten metal fills every detail of the cavity.
6. Cooling and Solidification
The metal is allowed to cool and solidify within the mold. Controlled cooling ensures uniform material properties and minimizes defects like shrinkage or warping.
7. Shell Removal
Once the metal has solidified, the shell mold is broken away, revealing the raw casting.
8. Finishing
The casting undergoes cleaning to remove residual shell material, gates, and risers. Additional processes, such as machining, polishing, or heat treatment, may be performed to meet final specifications.
Advantages of Shell Mold Casting
Shell mold casting offers numerous advantages, making it a preferred choice for precision manufacturing:
- High Dimensional Accuracy
The process yields tight tolerances and precise dimensions, reducing the need for extensive machining. - Excellent Surface Finish
The fine sand and resin mixture produces smooth surfaces, minimizing post-casting finishing work. - Complex Geometries
The method supports intricate designs and thin-walled structures that are difficult to achieve with traditional sand casting. - Material Versatility
Shell mold casting is compatible with a wide range of metals, including cast iron, steel, aluminum, and copper alloys. - Efficiency in Mass Production
Once the pattern is made, the process allows for rapid and consistent production of high-quality castings. - Reduced Material Waste
Near-net-shape casting minimizes material wastage, making the process cost-effective.
Challenges of Shell Mold Casting
Despite its many benefits, shell mold casting has certain limitations:
- High Initial Costs
The creation of precision patterns and specialized equipment can be expensive, making the process less economical for small production runs. - Limited Size
Shell molds are typically suited for small to medium-sized castings due to their fragility. - Environmental Concerns
The use of resin-bonded sand generates emissions during curing and pouring, requiring proper ventilation and environmental controls. - Longer Lead Times
The initial setup, including pattern creation and mold preparation, can be time-intensive. - Specialized Expertise
The process requires skilled operators and careful control to maintain consistency and quality.
Applications
Shell mold casting is used across various industries due to its precision and adaptability:
1. Automotive Industry
The process is widely employed to manufacture engine blocks, cylinder heads, transmission housings, and brake components. Its precision ensures reliable performance in critical applications.
2. Aerospace Industry
In aerospace, shell mold casting is used for turbine blades, structural components, and other high-performance parts that demand tight tolerances and excellent mechanical properties.
3. Industrial Machinery
The process is used to produce components like pump housings, valve bodies, and gearboxes, where strength and durability are essential.
4. Electrical Equipment
Parts such as motor housings and electrical enclosures benefit from the method’s ability to produce fine details and smooth finishes.
5. Art and Ornamental Casting
Shell mold casting is also used for producing decorative items, sculptures, and intricate designs in metal.
Innovations and Future Trends
Recent advancements are enhancing the efficiency and sustainability of shell mold casting:
- Additive Manufacturing for Patterns
3D printing technology is revolutionizing pattern creation, enabling faster prototyping and complex designs. - Eco-Friendly Resins
Development of low-emission resins and binders is reducing the environmental impact of the process. - Automation
Automated mold-making and pouring systems are improving productivity and reducing labor costs. - Process Monitoring
Advanced sensors and digital tools are providing real-time data for better process control and defect prevention. - Enhanced Recyclability
Efforts to reclaim and reuse resin-coated sand are making the process more sustainable.
Conclusion
Shell mold casting remains a cornerstone of modern manufacturing, offering precision, efficiency, and versatility. While it faces challenges such as high initial costs and environmental concerns, ongoing innovations are addressing these issues and expanding its potential. As industries continue to demand high-quality, complex metal components, shell mold casting will undoubtedly remain a vital part of the manufacturing landscape.
