Temperature is a critical factor in the casting process, affecting every stage, from the melting of the raw material to the final solidification and cooling of the cast product. Proper temperature control ensures the quality, mechanical properties, and dimensional accuracy of cast components. This article explores the influence of temperature on various aspects of the casting process, its challenges, and strategies to optimize temperature management for superior outcomes.
1. Temperature in Melting and Pouring
The initial stage of casting involves melting the raw material, which requires precise temperature control to achieve the desired fluidity and chemical composition.
- Melting Temperature: The material’s melting temperature determines the energy required for melting and influences the properties of the molten metal. For instance, aluminum alloys require lower temperatures (~660°C), while steels demand much higher temperatures (~1400°C).
- Superheat: Superheating the molten metal above its melting point improves its fluidity, allowing it to fill intricate mold geometries. However, excessive superheating can lead to gas absorption, oxidation, or undesirable microstructural changes.

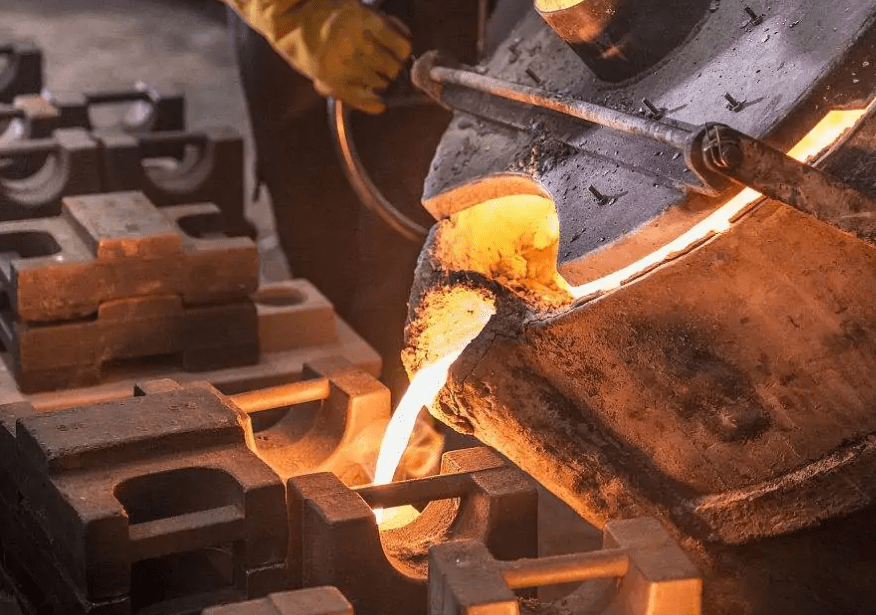

- Pouring Temperature: The pouring temperature must strike a balance between fluidity and solidification control. Insufficient temperature can cause defects like incomplete filling or cold shuts, while excessively high temperatures increase the risk of shrinkage defects, gas porosity, and mold erosion.
2. Temperature and Solidification
The solidification phase is crucial in determining the microstructure and properties of the cast component. Temperature gradients and cooling rates play pivotal roles during this stage.
- Cooling Rate: Faster cooling rates promote the formation of finer grains, which enhance mechanical properties such as strength and toughness. Conversely, slow cooling rates can result in coarser grains, reducing the component’s overall performance.
- Thermal Gradients: Uneven temperature distribution during solidification can cause defects such as shrinkage porosity, cracks, and residual stresses. Proper mold design and cooling strategies help mitigate these issues.
- Solidification Time: The time taken for the molten metal to solidify affects the casting’s surface finish, dimensional accuracy, and internal quality. Controlled cooling ensures uniform solidification and reduces the likelihood of defects.
3. Temperature and Mold Materials
The interaction between the molten metal and the mold material is influenced by temperature, impacting the mold’s performance and the quality of the cast product.
- Mold Preheating: Preheating the mold reduces thermal shock and minimizes the risk of cracking or warping, especially in permanent mold casting. It also prevents rapid cooling of the molten metal, which can lead to surface defects.
- Mold Material Selection: Different mold materials have varying thermal properties, affecting heat transfer and cooling rates. For instance, sand molds provide slower cooling compared to metal molds, which results in different microstructures and properties in the cast component.
- Thermal Fatigue: Repeated exposure to high temperatures can cause thermal fatigue in molds, especially in high-volume production. Effective cooling systems and periodic maintenance extend mold life.
4. Effects of Temperature on Casting Defects
Improper temperature control is a common cause of casting defects, which can compromise the performance and reliability of the final product.
- Gas Porosity: Overheating molten metal increases gas solubility. During solidification, gases are released, forming porosity defects.
- Hot Tears: High thermal gradients and improper cooling rates can lead to hot tears, where the material cracks during solidification.
- Shrinkage: Excessive pouring temperatures can exacerbate shrinkage defects by increasing the volume of liquid metal that contracts during solidification.
- Cold Shuts: Insufficient pouring temperatures may prevent the molten metal from properly fusing, resulting in visible lines or weak spots in the casting.
5. Temperature Control in Different Casting Methods
Each casting method has unique temperature-related requirements, influencing process parameters and outcomes.
- Sand Casting: The pouring temperature must account for the thermal insulating properties of sand molds, ensuring complete filling without causing excessive mold erosion.
- Die Casting: In high-pressure die casting, the high cooling rate of metal molds necessitates precise control of both mold and molten metal temperatures to avoid rapid solidification and defects.
- Investment Casting: The preheating temperature of the ceramic mold is critical for ensuring proper flow and solidification of the molten metal, especially for intricate geometries.
- Continuous Casting: Continuous casting relies on consistent temperature control to achieve uniform solidification and prevent defects in the continuous strand.
6. Advanced Techniques for Temperature Management
Modern casting processes leverage advanced technologies to monitor and control temperature for improved quality and efficiency.
- Thermal Analysis: Real-time monitoring of molten metal temperature provides insights into fluidity, chemical composition, and potential defects.
- Computer Simulation: Software tools predict temperature distribution, solidification patterns, and defect formation, enabling optimization of casting parameters.
- Induction Heating: Induction furnaces offer precise and energy-efficient heating, ensuring consistent melting temperatures.
- Cooling Systems: Advanced cooling systems, such as water-cooled molds or air blast cooling, regulate temperature during and after solidification.
- Thermal Imaging: Infrared cameras monitor surface temperatures of molds and castings, providing valuable data for process adjustments.
7. Challenges in Temperature Management
Despite technological advancements, managing temperature in casting processes presents several challenges:
- Energy Consumption: High temperatures in metal melting and preheating require significant energy, increasing production costs.
- Environmental Impact: Excessive energy use contributes to greenhouse gas emissions, emphasizing the need for sustainable practices.
- Process Complexity: Maintaining uniform temperatures in large or complex molds is challenging and requires precise control systems.
- Material Variability: Differences in material thermal properties and compositions necessitate customized temperature management strategies.
8. Conclusion
Temperature is a pivotal factor in casting processes, influencing the quality, properties, and reliability of the final product. From melting and pouring to solidification and cooling, precise temperature control minimizes defects and enhances mechanical performance. Advanced technologies, such as thermal analysis, computer simulations, and efficient cooling systems, are revolutionizing temperature management, ensuring consistent and high-quality cast components.
As industries continue to demand more complex and reliable cast products, the importance of temperature control in casting processes will only grow. By addressing the associated challenges and leveraging modern techniques, manufacturers can achieve superior results while minimizing costs and environmental impact.
